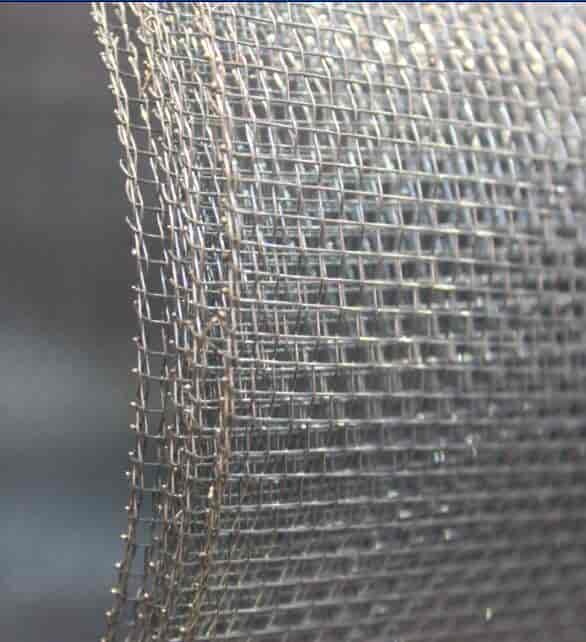

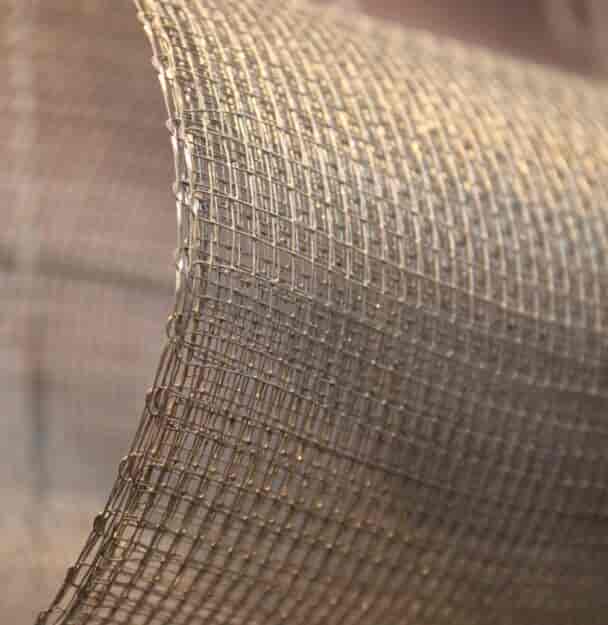

Square wire mesh
Finish :
*Hot dipped galvanized after weaving.
*Hot dipped galvanized before weaving
*Electric galvanized after weaving
*Electric galvanized before weaving
*Pvc coated.
| NORMALLY SPECIFICATIONS AVAILABLE | ||||
|---|---|---|---|---|
| MESH | WIRE GAUGE(BWG) | WIDTH | LENGTH | PACKING |
| 2X2MESH | 16,17,18,19,20,21 | 0.5M-1.5M | 25M,30M | IN ROLL |
| 3X3MESH | 19,20,21,22 | 0.5M-1.5M | 25M,30M | IN ROLL |
| 4X4MESH | 20,21,22,23,24 | 0.5M-1.5M | 25M,30M | IN ROLL |
| 5X5MESH | 22,23,24,25,26 | 0.5M-1.5M | 25M,30M | IN ROLL |
| 6X6MESH | 22,23,24,25,26 | 0.5M-1.5M | 25M,30M | IN ROLL |
| 7X7MESH | 23,24,25,26 | 0.5M-1.5M | 25M,30M | IN ROLL |
| 8X8MESH | 24,25,26,27 | 0.5M-1.5M | 25M,30M | IN ROLL |
| 10X10MESH | 26,27,28,29,30 | 0.5M-1.5M | 25M,30M | IN ROLL |
| 12X12MESH | 26,27,28,29,30 | 0.5M-1.5M | 25M,30M | IN ROLL |
| 20X20MESH | 31,32,33,34 | 0.5M-1.5M | 25M,30M | IN ROLL |
| 30X30MESH | 32,33,34 | 0.5M-1.5M | 25M,30M | IN ROLL |

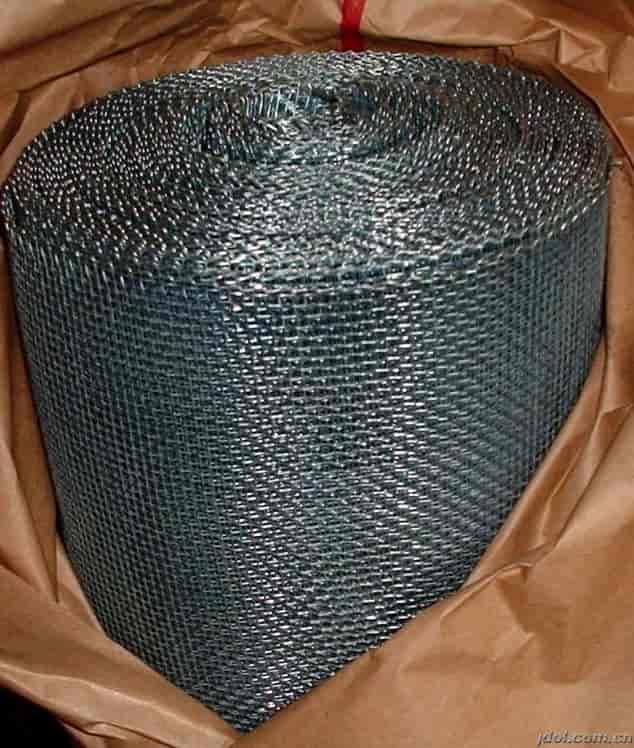

Packing:
Each roll wrapped with water proof paper, then covered with hessian cloth. eachroll shrink wrapped.
